PRODUCT

Hair Implanter

KNU IMPLANTER

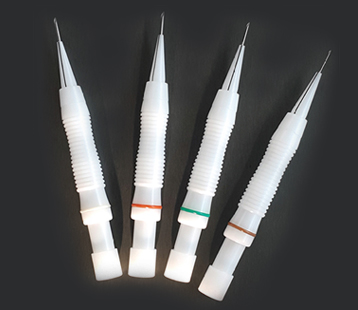

  • Needles
  • No. Item Name External Diameter of the Needle (mm)
    1 OAA-2202 0.60
    2 OAA-2293 0.70
    3 OAA-2190 0.80
    4 OAA-2294 0.90
    5 OAA-2191 1.00
    6 OAA-2192 1.20

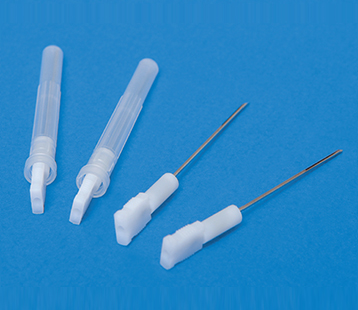

REPLACEMENT NEEDLE

The disposal and non-sterile replacement needle is the core component of the hair implanter. Apply steam sterilization under high pressure to the product before use. (Use the recommended sterilization method for each product)

  • Needles
  • No. Item Name External Diameter of the Needle (mm)
    1 OAA-2199 0.60
    2 OAA-2112 0.70
    3 OAA-2109 0.80
    4 OAA-2113 0.90
    5 OAA-2110 1.00
    6 OAA-2111 1.20

※ Search “KNU Implanter" on YouTube

Features of MEDISOL's KNU IMPLANTER

Hair implanters and replacement needles come in different sizes

  • The needle size is printed on the related internal components to help customers identify the model easily when assemble the components.

Hair Implanter

Co-develops with Kyungpook National University Hospital

  • KNU implanter has been commonly used in almost every Korean hair implanting hospital
  • It has been exported to 10 countries over the world

Best for follicular unit transplantation

  • Fine implanter : eyebrow implant
  • Small implanter : for the follicle with a strand of hair
  • Medium implanter : for the follicle with two strands of hair
  • Large implanter : for the follicle with three strands of hair

Single step implant

  • No slit or hole is necessary

Hair Implanter

Most highest speed

  • About 1,500 to 2,000 strands of hair can be implanted in an hour

Best graft survival rate

  • Does not damage follicles when implanting
  • 90 % of the hair is reproduced

Easy to control the needle

  • Easy to control the length of the inserted needle with “Needle Controller”
  • Easy to control the direction, density and angle of the hair, leading to comfortable implant

Hair Implanter

Accuracy of the needle processing

  • Made of high quality metal
  • Side and uniform slits
  • Elaborated and sharp

Hair Implanter

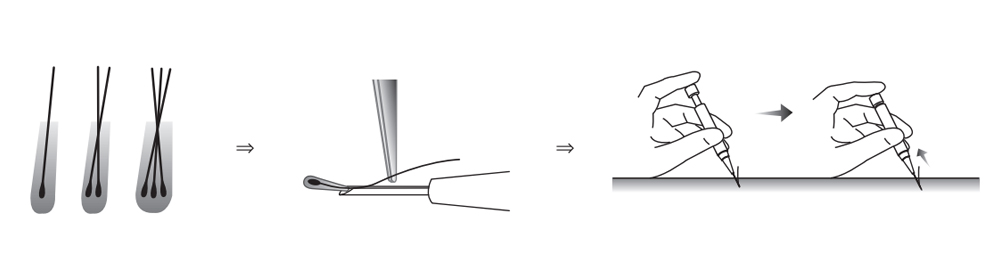

Hair Implanter how to use

  • 1

    The user should sterilize the device before use.
    ※ Steam Sterilization under High Pressure: Put the product into the Autoclave, conceal it and process it at steam pressure 121~135 ℃ for 10 to 30 minutes.

  • 2

    Attach a follicle to the needle part of the implanter that is assembled correctly.

  • 3

    Insert the needle part with the follicle to a proper position of scalp.

  • 4

    Squeeze Outer Body, set the follicle in the scalp and remove the needle from the scalp.

※ Refer to the attached catalog and manual for details!

^
